Engine
Item | Specification | Remarks |
|---|---|---|

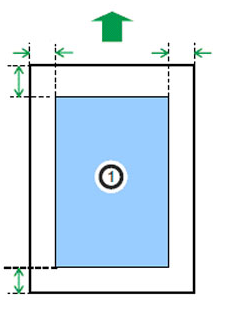

Assured Image Area | Except Envelopes Leading edge: 4.2 mm Left/Right: 4.2 mm Trailing edge: 4.2 mm
Envelopes Leading edge: 15 mm Left/Right: 10 mm Trailing edge: 10 mm | Except Envelopes  Envelopes  |
Magnification Error | ±0.75% or less | Except when duplexing. |
| Perpendicularity | ± 0.7 mm/100 mm | |
| Linearity | ± 0.25 mm/100 mm |
Copy
| Item | Specification | Remarks |
|---|---|---|
| Resolution | 100%/Enlargement: Min 3.6 lines/mm or more Reduction: Min 3.6 × M lines /mm or more | M: Magnification Not applicable when using the ADF |
| Assured Image Area | Leading edge: 4.2 mm Left/Right: 4.2 mm Trailing edge: 4.2 mm | Envelopes Leading edge: 15 mm Left/Right: 10 mm Trailing edge: 10 mm |
| Magnification Error | Main: ± 1.25% or less Sub: ± 1.25% or less | Except when duplexing. |
| Perpendicularity | ± 1.2 mm/100 mm or less | |
| Missing Image Area | Left: 3.0 ± 2.5 mm Right: 3.0 ± 2.0 mm (Reference value) Leading edge: 4.0 ± 2.0 mm Trailing edge: 4.0 ± 3.0 mm (Reference value) |
Scan
| Item | Specification | Remarks |
|---|---|---|
| Magnification Error | Main: ± 0.5% Sub: ± 1.5% | |
| Magnification Error Deviation | Main: ±2.0% Sub: ± 3.0% | |
| Perpendicularity | ± 0.55 deg |
