SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Paper Feed
Registration Sensor
Remove the registration unit (
Registration Roller
).
Turn the registration unit over.

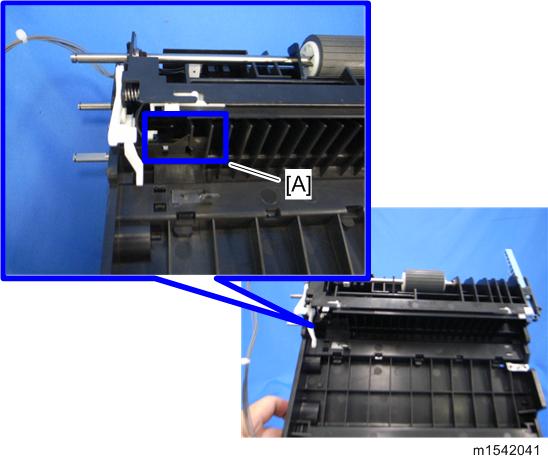

Remove the registration sensor [A] (
x 1, 3 hooks).
