1. Remove the front cover (Front Cover).

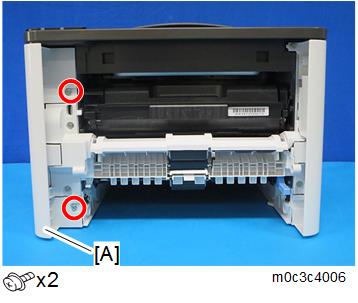

  2. Remove two screws on the front side of the left cover [A].

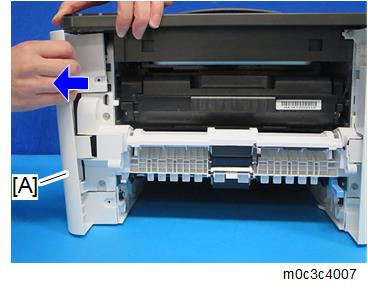

  3. Pull the front upper part of the left cover [A] to release the hook.

    • The outside of the cover has marks indicating the position of the hooks.

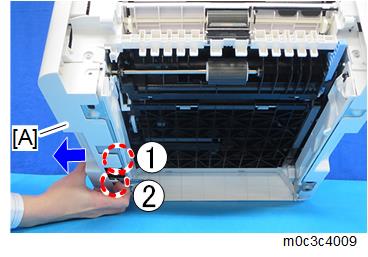

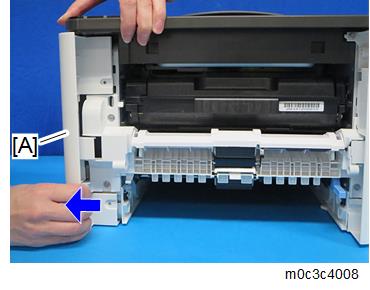

  4. Pull the front bottom part of the left cover [A] to release the hook.

  5. Lift the machine, and release the two hooks of the left cover [A].

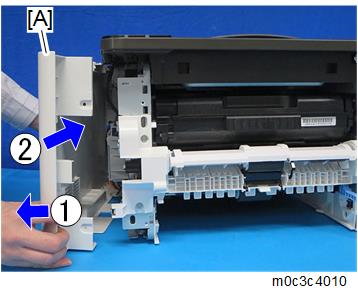

  6. Open the left cover [A] about 30 degrees, and then slide it backward to remove it.

  • There are many hooks and tabs inside the left cover. Before removing the left cover, see the photos below.
