The non-contact thermistor is installed so that there is a gap of 1 mm between it and the surface of the hot roller. To maintain this gap of 1 mm, do not remove the non-contact thermistor, and do not remove the hot roller and the pressure roller, which cannot be removed without the removal of the non-contact thermistor.

Replace the fusing unit when the non-contact thermistor, the hot roller, or the pressure roller are broken.



  1. Remove the right cover (Printer models: Right Cover, MF models: Right Cover).

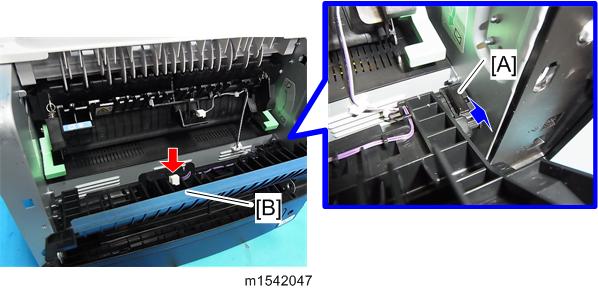

  2. Release the lock [A], and then remove the entrance guide [B] ( x 1).

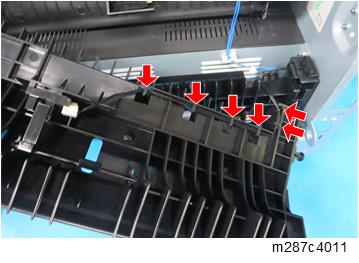

    A harness is routed on the entrance guide. Remove the entrance guide carefully.

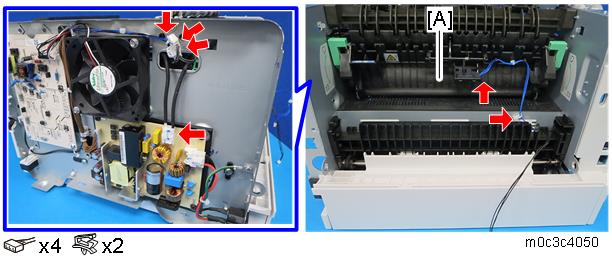

  3. Disconnect the connectors from the fusing unit [A].

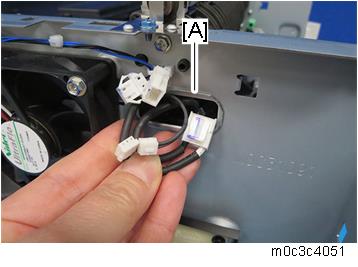

  4. Pass the harnesses through the hole [A] inside the machine.

  5. Remove the fusing unit [A] ( x 4).

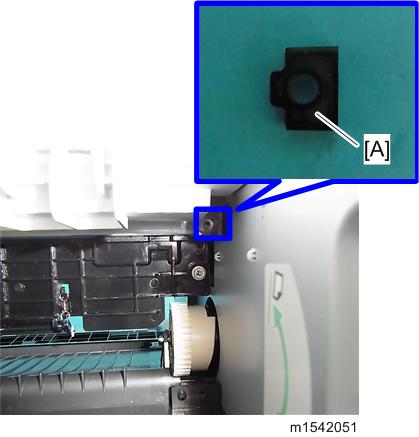

    • Make sure that the two bushings [A] on both sides remain in position.
