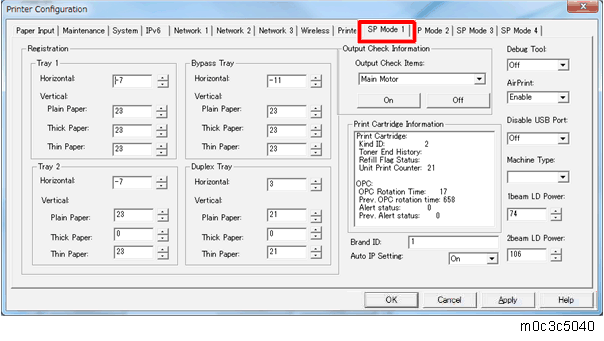

| Group | Item | Remarks |
|---|---|---|
| Registration: Tray 1 | Horizontal | Adjusts the horizontal registration for each tray and paper type. If the machine settings are reset to the factory defaults, this value does not change. [-40 to 40 / 1* / 0.1 mm/step] |
| Vertical: Plain Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thick Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thin Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Registration: Tray 2 | Horizontal | [-40 to 40 / 2* / 0.1 mm/step] |
| Vertical: Plain Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thick Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thin Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
Registration: Bypass Tray | Horizontal | [-40 to 40 / -5* / 0.1 mm/step] |
| Vertical: Plain Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thick Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thin Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
Registration: Duplex Tray | Horizontal | [-40 to 40 / 8* / 0.1 mm/step] |
| Vertical: Plain Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thick Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Vertical: Thin Paper | [-40 to 40 / 23* / 0.1 mm/step] | |
| Output check | Main Motor | Output check (Main motor) |
| Middle Clutch | Output check (Relay clutch) | |
| Tray1 Clutch | Output check (Paper feed clutch) | |
| Bypass solenoid | Output check (Bypass solenoid) | |
| Registration clutch | Output check (Registration clutch) | |
| Fan High Speed | Output check (Fan high speed) | |
| Fan Low Speed | Output check (Fan low speed) | |
| Erase Lamp | Output check (Quenching lamp) | |
| Polygon Motor | Output check (Polygon motor) | |
| Duplex Motor Normal | Output check (Duplex motor normal) | |
| Duplex Motor Reverse | Output check (Duplex motor reverse) | |
Print Cartridge Information | Displays Print Cartridge Information. Displays: Print cartridge: Kind ID, Toner End History, Refill Flag Status, Unit Print Counter OPC: OPC Rotation Time, Prev. OPC rotation time, Alert Status, Prev. Alert Status | |
| Brand ID | 0* – 15 Displays the current brand ID number. DFU | |
| Auto IP Setting | On */ Off | |
| Debug Tool | Off */ NIC/ USB | |
| AirPrint | Enable */ Disable | |
| Disable USB port | Off */ On | |
| Machine Type | Inactive */ Active | |
| 1Beam LD Power | [42 to 108 / 74 (Default) / 1 /step] | |
| 2Beam LD Power | [74 to 137 / 106 (Default) / 1/step] | |
*: Default
