SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Duplex
Duplex Sensor
Open the rear cover.

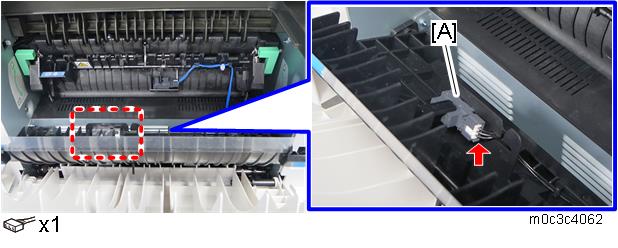

Remove the duplex sensor [A].
