SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Fusing and Exit
Thermostat
Remove the fusing unit (
Fusing Unit
).
Remove the fusing upper cover (
Fusing Upper Cover
)

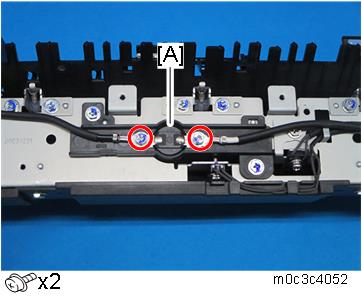

Remove the thermostat [A].
