SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Electrical Components
FCU (Only for Fax Models)
Remove the main board (
Main Board (MF Touch Panel Models)
).

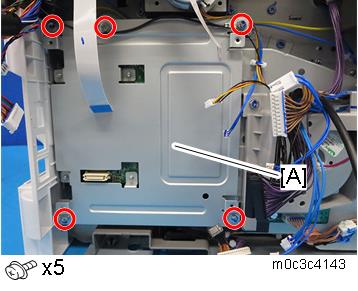

Remove the main board bracket [A].

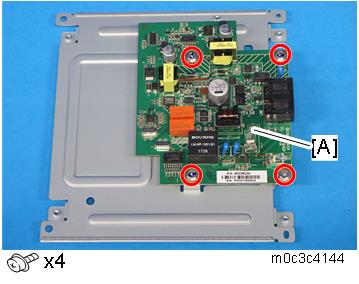

Remove the FCU [A].
Expand All
