SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Fusing and Exit
Fusing Thermistor
Remove the fusing unit (
Fusing Unit
).
Remove the fusing upper cover (
Fusing Upper Cover
).

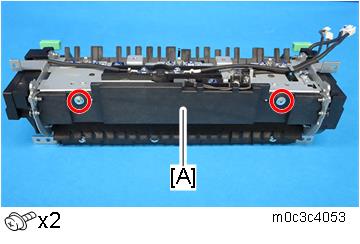

Remove the fusing front cover [A].

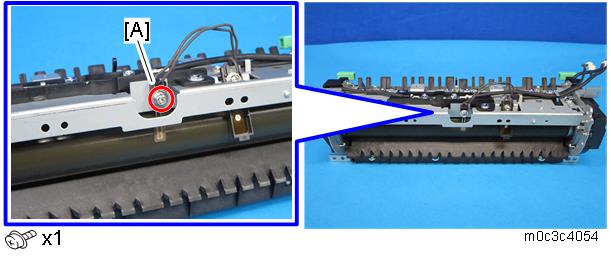

Remove the fusing thermistor [A].
