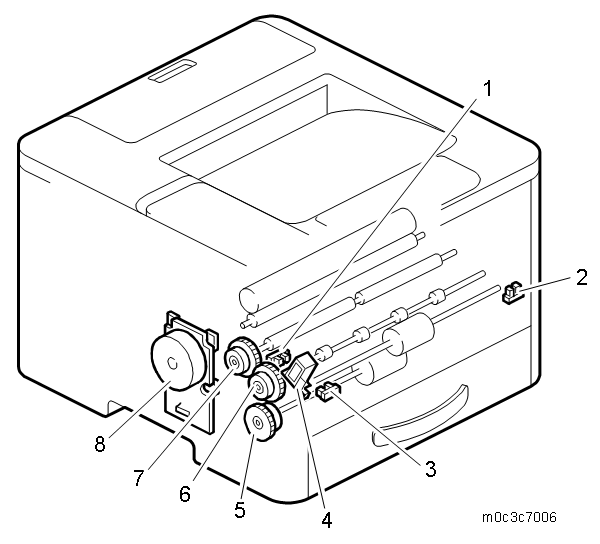

No. | Description | No. | Description |
|---|---|---|---|
| 1 | Registration sensor | 5 | Paper feed clutch |
| 2 | By-pass feed sensor | 6 | Relay clutch |
| 3 | Paper end sensor | 7 | Registration clutch |
| 4 | By-pass feed solenoid | 8 | Main motor |
No. | Description | No. | Description |
|---|---|---|---|
| 1 | Registration sensor | 5 | Paper feed clutch |
| 2 | By-pass feed sensor | 6 | Relay clutch |
| 3 | Paper end sensor | 7 | Registration clutch |
| 4 | By-pass feed solenoid | 8 | Main motor |
