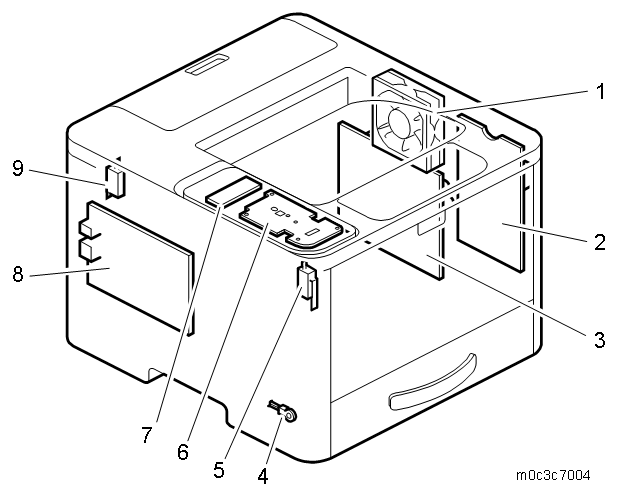

No. | Description | No. | Description |
|---|---|---|---|
| 1 | Cooling fan | 6 | Operation panel board |
| 2 | HVP | 7 | LCD |
| 3 | PSU | 8 | Main board |
| 4 | Environment thermistor | 9 | Rear cover switch |
5 | Front cover switch |
No. | Description | No. | Description |
|---|---|---|---|
| 1 | Cooling fan | 6 | Operation panel board |
| 2 | HVP | 7 | LCD |
| 3 | PSU | 8 | Main board |
| 4 | Environment thermistor | 9 | Rear cover switch |
5 | Front cover switch |
