SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Paper Feed
By-pass Feed Solenoid
Remove the left cover (
Printer models:
Left Cover
,
MF models:
Left Cover
).

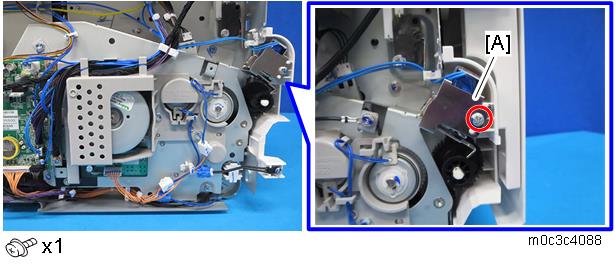

Remove the solenoid cover [A].

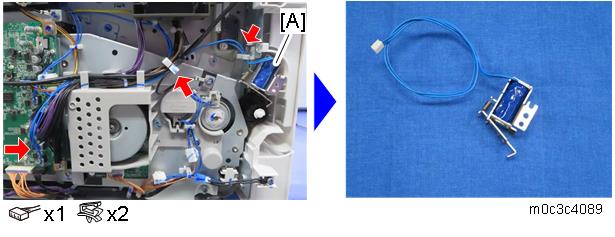

Remove the by-pass feed solenoid [A].
