SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Exterior Covers (Printer Models)
Rear Cover

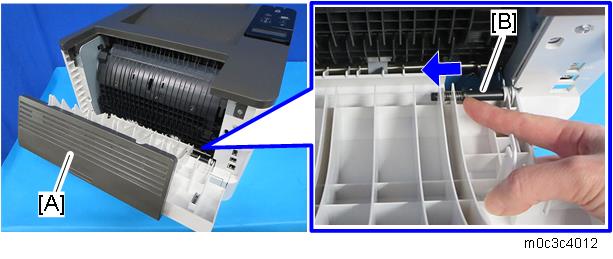

Open the rear cover [A].
Slide the shaft [B] in the direction of the blue arrow, and remove the rear cover.
