SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Drive
Duplex Motor
Remove the top cover (
Printer models:
Top Cover,
MF models:
Top Cover
).

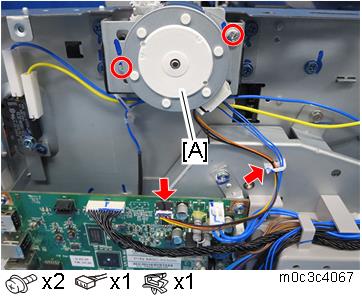

Remove the duplex motor [A].
