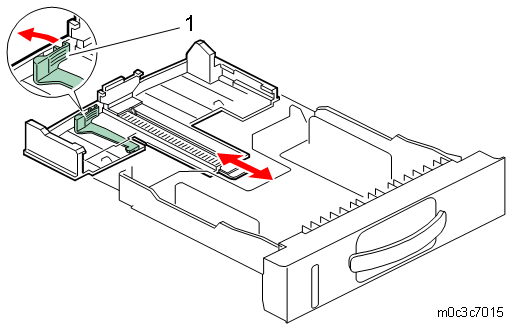

Tray Extension
| No. | Item |
|---|---|
| 1. | Lock lever |
When using paper longer than A4/Letter size, release the lock lever on the paper feed tray and extend the paper feed tray.

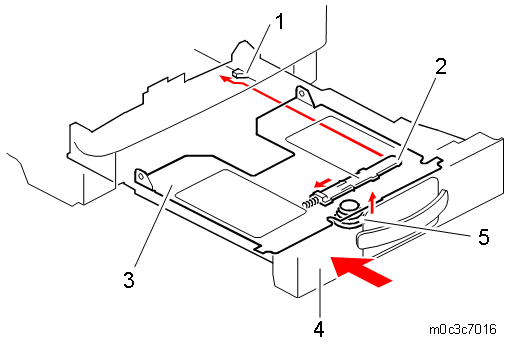

Paper Lift
| No. | Item |
|---|---|
| 1. | Projection |
| 2. | Release arm |
| 3. | Bottom plate |
| 4. | Paper tray |
| 5. | Compressed spring |
When the paper tray is inserted into the machine, a projection on the copier frame pushes the latch release arm (on the bottom part of the paper tray), enabling the compressed spring to lift the bottom plate.
Paper End Detection
When there is no paper in the tray, the feeler [A] falls into the cutout in the bottom plate, and the paper end sensor [B] comes on.
