1. Remove the fusing unit (Fusing Unit).

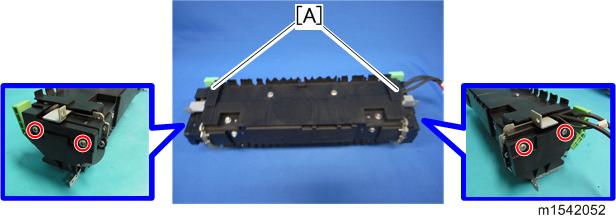

  2. Remove the fusing side covers [A] ( x 2 each).
  3. Turn the fusing unit over.

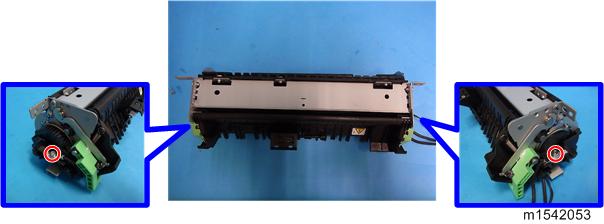

  4. Remove the screws on both sides ( x 1 each).

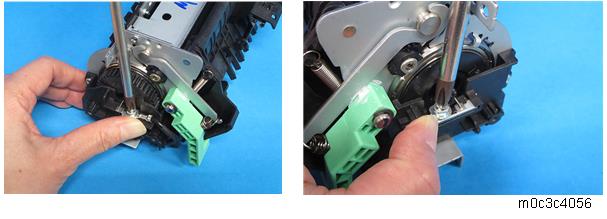

    Hold the terminal and flat nut with your finger firmly. Otherwise, the lamp secured together with the flat nut moves with rotation of the screw, which causes the lamp to break.

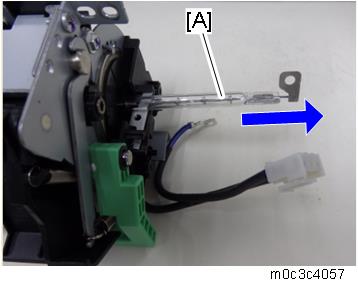

  5. Remove the fusing lamp [A].

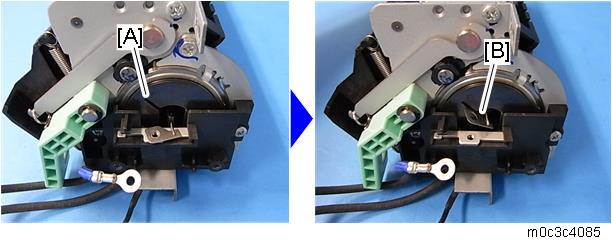

    Pull out the fusing lamp while aligning the flat terminal [B] with the notch [A] on the right side of the hot roller.

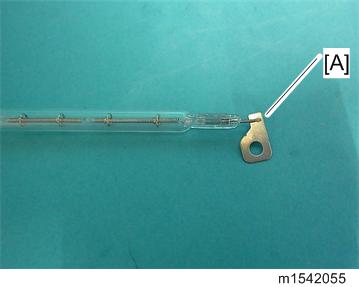

    When installing a new lamp, the flat terminal [A] as shown below must be on the right side of the fusing unit (fusing cable side).
