1. Remove the front cover (Front Cover).
  2. Remove the left cover (Left Cover).
  3. Remove the rear cover (Rear Cover).
  4. Remove the right cover (Right Cover).
  5. Remove the scanner unit (Scanner Unit).

  6. Remove the top cover [A].

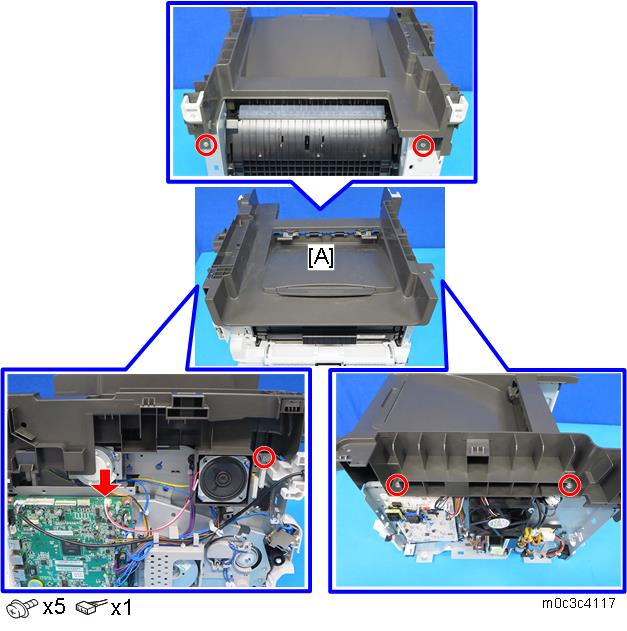

    Fax models:

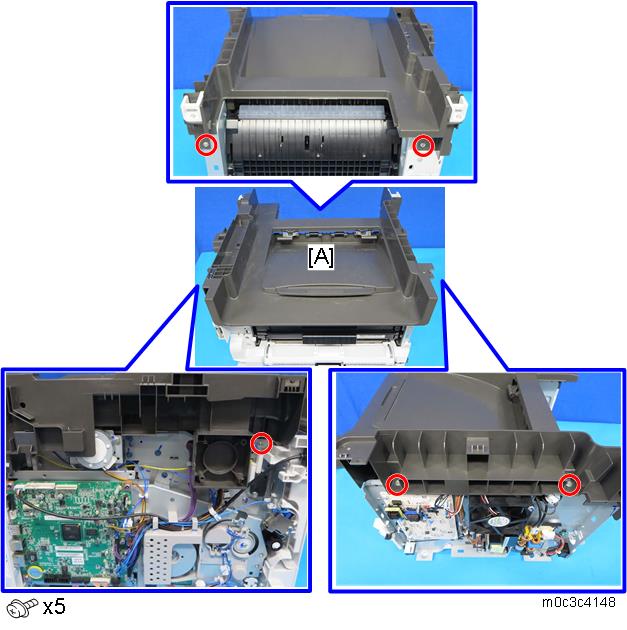

    Models with No Fax:

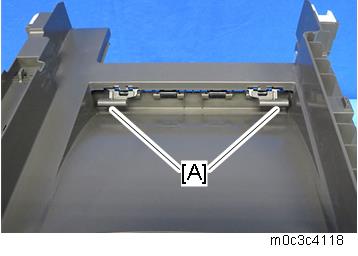

    • When re-installing the top cover, always verify that the two paperweights [A] are lifted. If they are not lifted to fit into the paper slot, the paperweights [A] could be damaged.
    • Make sure that these paperweights [A] can be moved smoothly (up and down) after installing the top cover. If these paperweights do not move smoothly, try installing the top cover again.
