SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Paper Feed
By-pass Feed Roller Friction Pad
Remove the by-pass feed roller (
By-pass Feed Roller
).

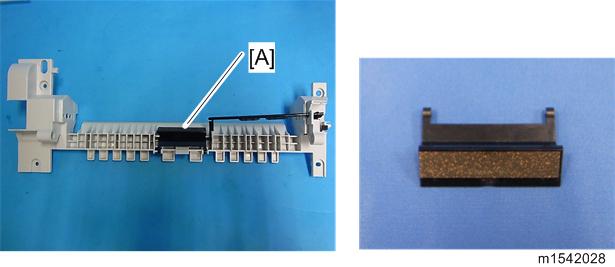

Remove the by-pass feed roller friction pad [A] (2 hooks, spring x 1).
