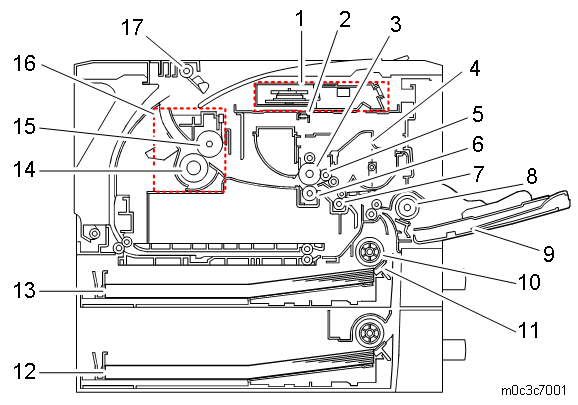

1. | Laser unit | 10. | Paper feed roller |
2. | Quenching lamp | 11. | Friction pad |
3. | Drum | 12. | Optional paper tray |
4. | Cartridge (AIO-type) | 13. | Paper tray |
5. | Development roller | 14. | Pressure roller |
6. | Transfer roller | 15. | Hot roller |
7. | Registration roller | 16. | Fusing unit |
8. | By-pass feed roller | 17. | Paper exit roller |
| 9. | By-pass feed tray |
