SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Image Transfer
Quenching Lamp
Remove the top cover (
Printer models:
Top Cover,
MF models:
Top Cover
).
Remove the AIO.

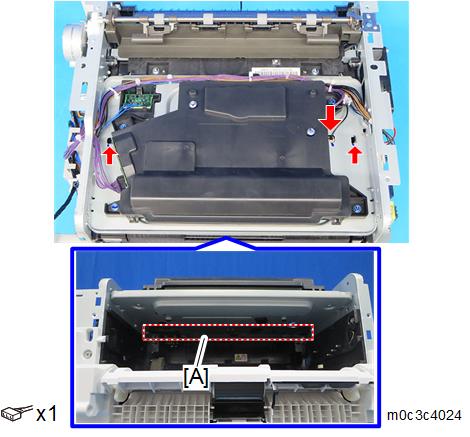

Remove the quenching lamp with the case [A] (2 hooks).

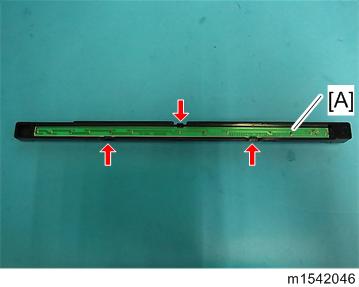

Remove the quenching lamp [A] from the case (hook x 3).
