SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ADF Unit (for Four-line LCD Models)
ADF Top Cover
Remove the ADF drive unit (
ADF Motor
).

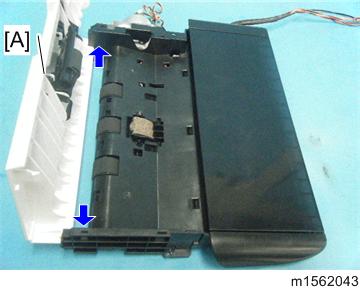

Open the ADF top cover [A] and remove it (two tabs).
