SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ARDF Unit (for Touch Panel Models)
ARDF Pick-Up Roller, ARDF Feed Roller

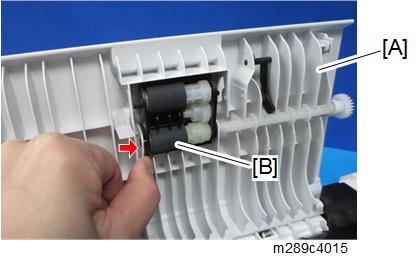

Open the ARDF top cover [A].
Remove the ARDF feed unit [B] (tab).

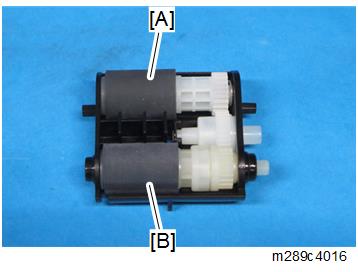

Remove the ARDF pick-up roller [A].
Remove the ARDF feed roller [B].
