SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ADF Unit (for Four-line LCD Models)
ADF Separation Pad
Open the ADF top cover.

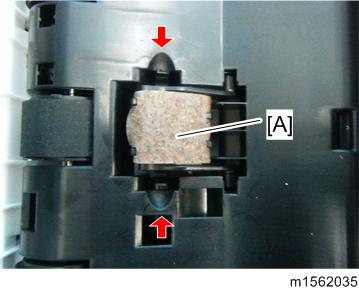

Remove the ADF separation pad [A] (2 hooks, spring x 1).
