SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ADF Unit (for Four-line LCD Models)
ADF Rear Cover
Remove the ADF unit (
ADF Unit
).
Turn the ADF unit over.

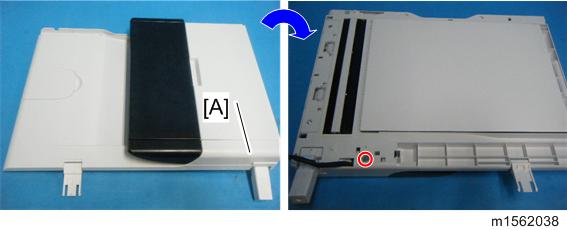

Remove the ADF rear cover [A] (
x 1).

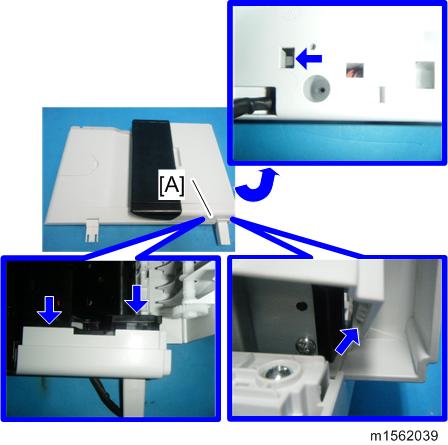

There are many hooks and tabs inside the ADF rear cover [A]. Before removing the ADF rear cover, see the photos below.
