SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Image Transfer
Toner End Sensor
Remove the left cover (
Printer models:
Left Cover,
MF models:
Left Cover
).
Remove the drive unit (
Drive Unit
).

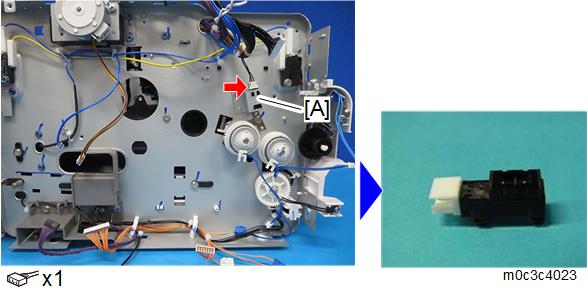

Remove the toner end sensor [A].
