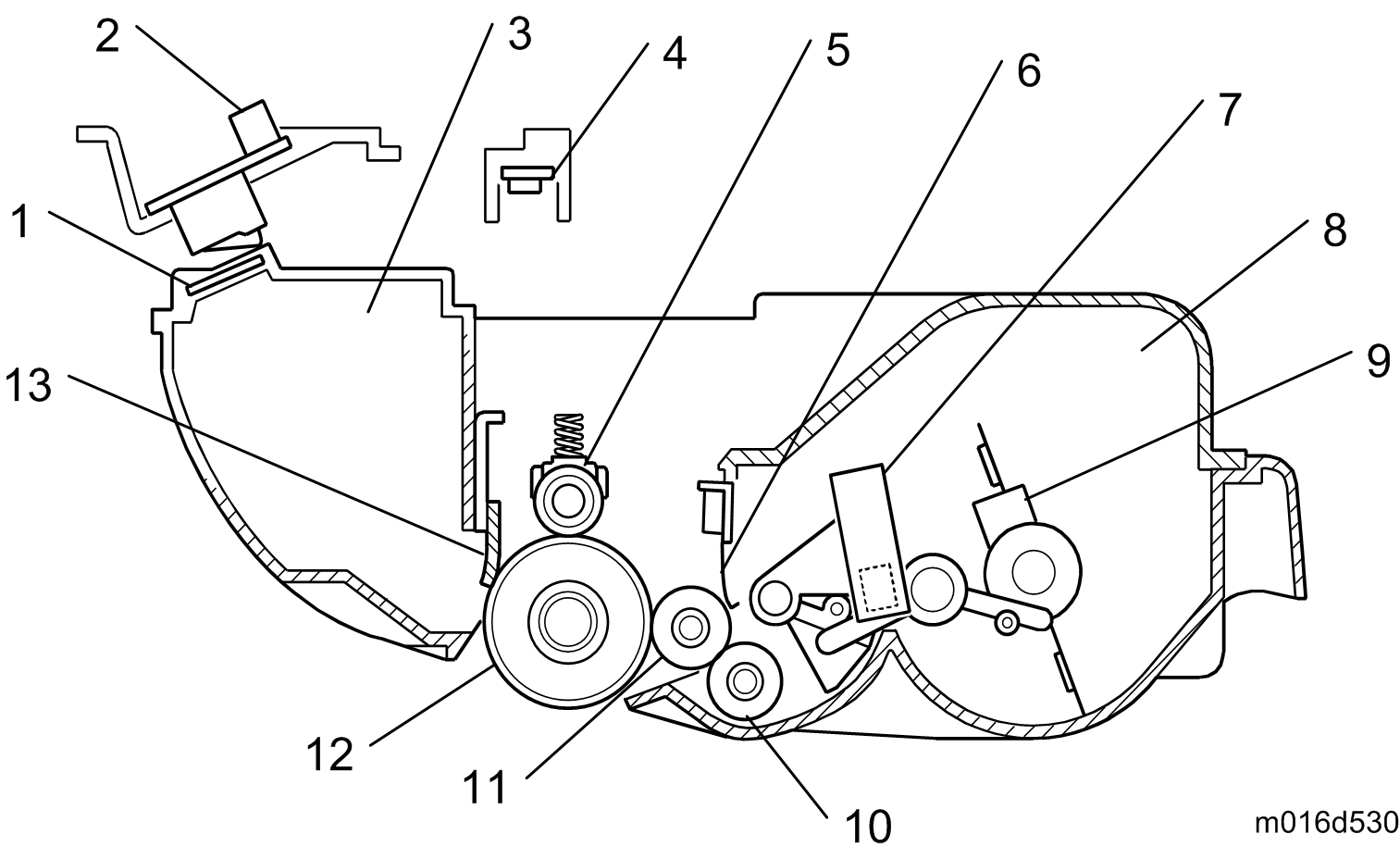

This type of cartridge is known as an “All-in One” (AIO) cartridge.
| Callout | Item | Callout | Item |
|---|---|---|---|
| 1. | ID Chip | 8. | Toner tank |
| 2. | ID chip PCB | 9. | Agitator |
| 3. | Waste toner tank | 10. | Toner supply roller |
| 4. | Quenching lamp | 11. | Development roller |
| 5. | Charge roller | 12. | Drum |
| 6. | Scraper | 13. | Cleaning blade |
| 7. | Toner end sensor |
