SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Electrical Components
Cooling Fan
Remove the right cover (
Printer models:
Right Cover
,
MF models:
Right Cover
).

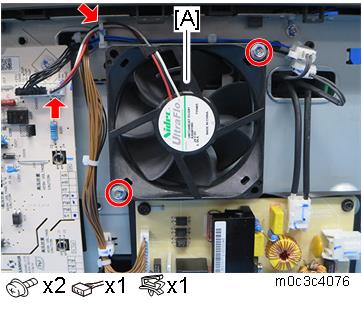

Remove the cooling fan [A].
Install the cooling fan with its decal facing the outside of the machine.
