SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Electrical Components
ID Chip Board
Remove the top cover (
Printer models:
Top Cover
,
MF models:
Top Cover
).

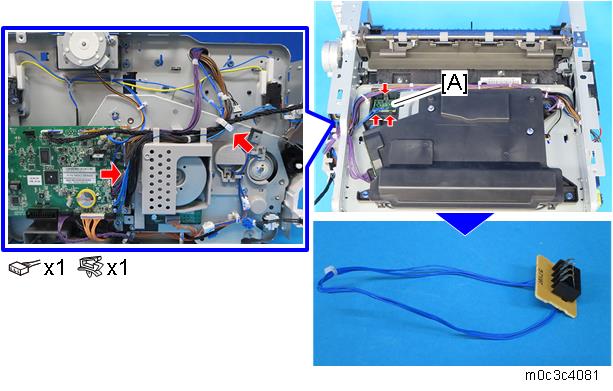

Release the three hooks, and remove the ID chip board [A].
