SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Fusing and Exit
Fusing Upper Cover
Remove the fusing unit (
Fusing Unit
).

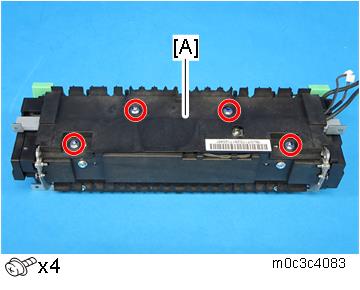

Remove the fusing upper cover [A].
