1. Remove the ARDF unit (ARDF Unit).
  2. Remove the ARDF front cover (ARDF Front Cover).
  3. Remove the ARDF rear cover (ARDF Rear Cover).
  4. Remove the original tray [A].

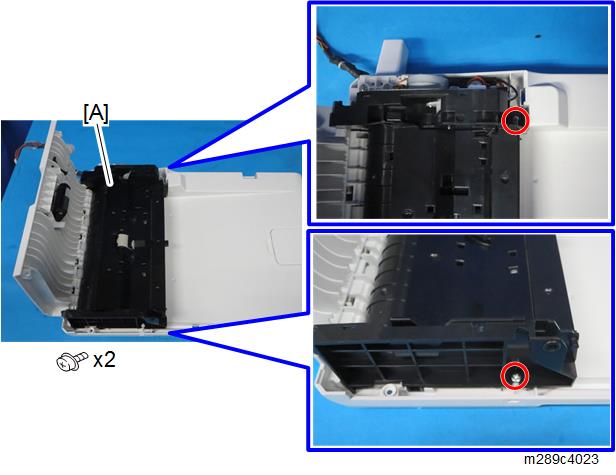

  5. Remove the ARDF drive unit [A].

    When removing/attaching the ARDF drive unit, make sure to route the harnesses carefully so that they will not be damaged.

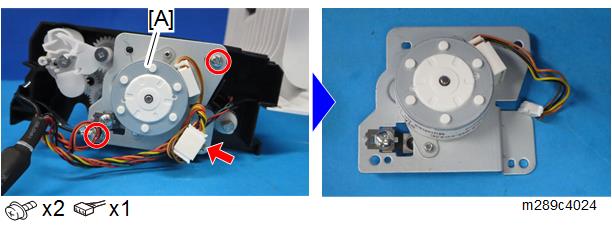

  6. Remove the ARDF motor assembly [A].

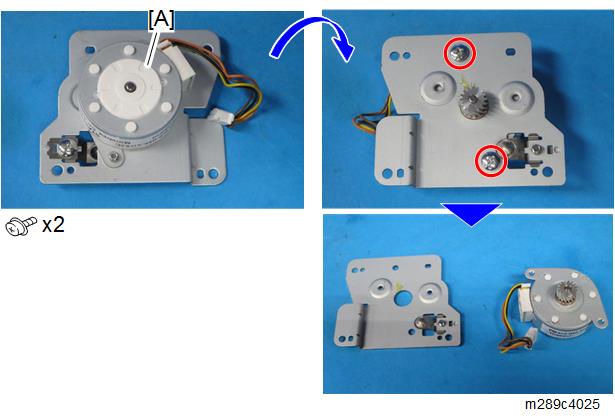

  7. Remove the ARDF motor [A].
