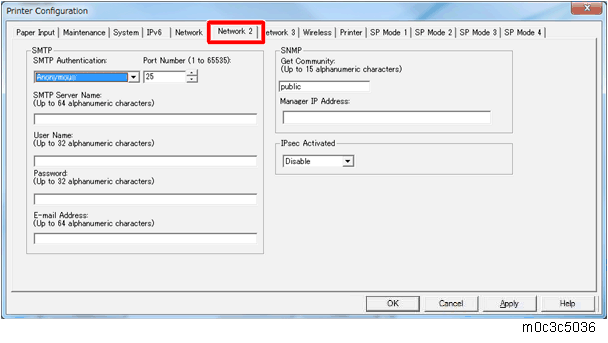

| Group | Item | Selections | Remarks |
|---|---|---|---|
| SMTP | SMTP Authentication | Anonymous */ SMTP Authentication/ POP before SMTP | - |
SMTP Server Name | Null string* | Up to 32 alphanumeric characters. The factory default is 'null string'. | |
| Port Number | 25* | 1 to 65535 The factory default is 25. | |
| User Name | Null string* | Up to 32 alphanumeric characters. The factory default is 'null string'. | |
| Password | Null string* | Up to 32 alphanumeric characters. The factory default is 'null string'. User-input characters and characters read back from the printer will show "*" in order to protect the user password. | |
| E-mail Address | Null string* | Up to 64 alphanumeric characters. (address for receiving e-mail) The factory default is 'null string'. | |
| SNMP | Get Community | public | Up to 15 alphanumeric characters. |
Manager IP Address | 0.0.0.0 * | The factory default is 0.0.0.0 If this setting is changed, the printer power must be turned off/on for the new setting to take effect. | |
| IPsec Activated | Disable */ Enable | - | |
*: Default
