SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Detailed Descriptions
Product Overview

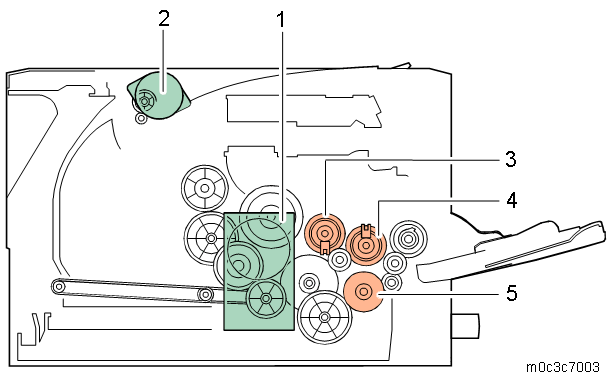

Drive Layout
No.
Item
1.
Main motor
2.
Duplex motor
3.
Registration clutch
4.
Relay clutch
5.
Paper feed clutch
