1. Remove the front cover (Front Cover).
  2. Remove the rear cover (Rear Cover).

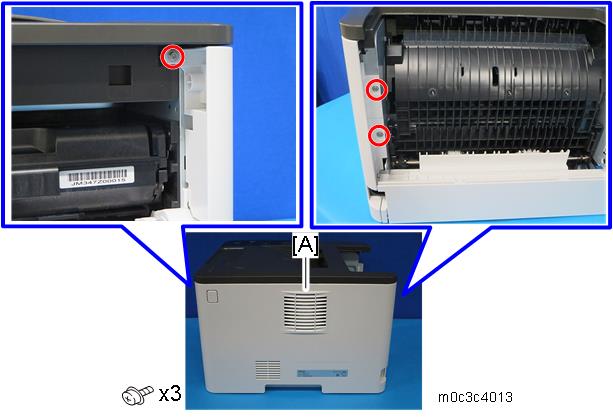

  3. Remove the three screws of the right cover [A].

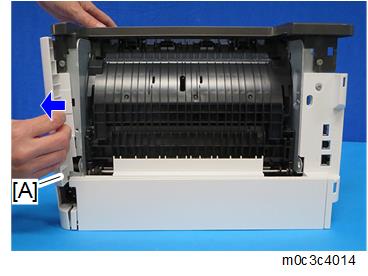

  4. Pull the rear part of the right cover [A] to release the hook.

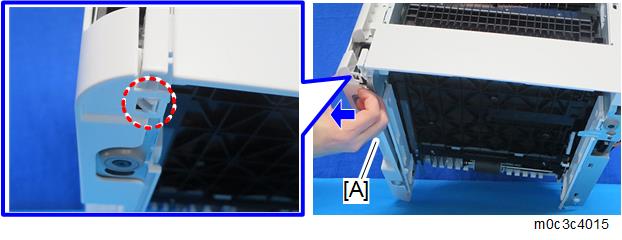

    The outside of the cover has marks indicating the position of the hooks.

  5. Lift the machine, and release the hook of the right cover [A].

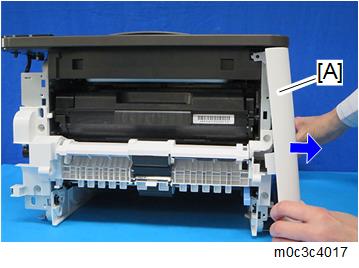

  6. Pull the front bottom part of the right cover [A] to release the hook.

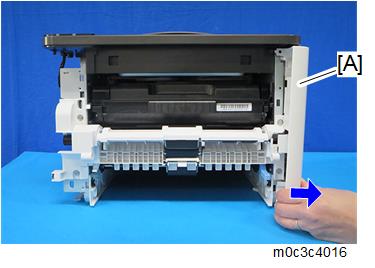

  7. Remove the right cover [A].

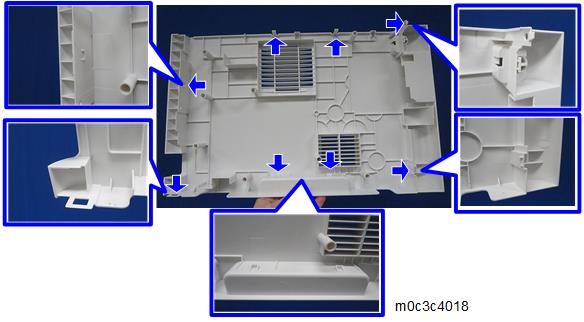

  • There are many hooks and tabs inside the right cover. Before removing the right cover, see the photos below.
