1. Remove the ADF unit (ADF Unit).
  2. Remove the ADF front cover (ADF Front Cover).
  3. Remove the ADF rear cover (ADF Rear Cover).

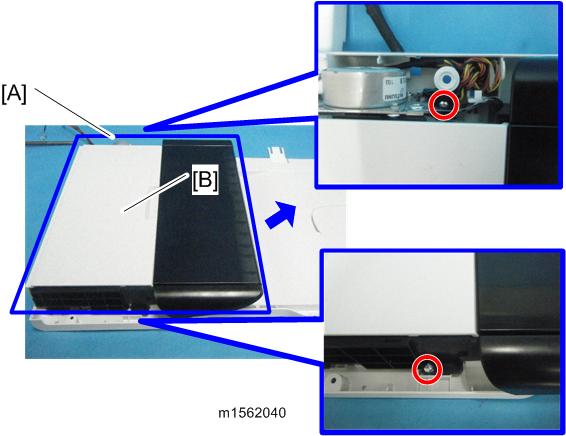

  4. Remove the ADF drive unit [A] while the ADF top cover [B] remains closed ( x 2).

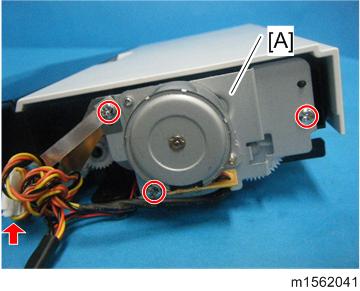

  5. Remove the ADF motor assembly [A] ( x 2, ground screw x 1, x 1, ground plate, discharge brush).

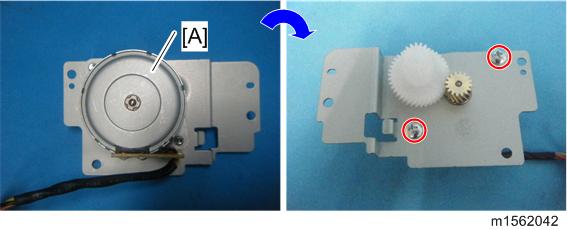

  6. Remove the ADF motor [A] ( x 2).
