SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Exterior Covers (Printer Models)
Operation Panel Unit
Remove the top cover (
Top Cover
).

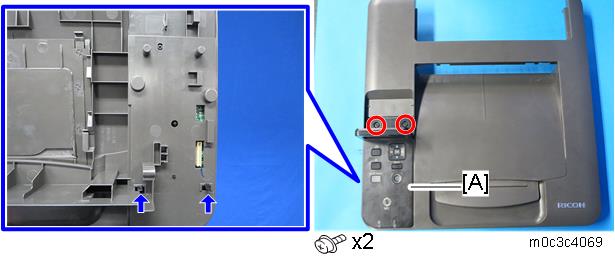

Turn the top cover over, and release the two hooks to remove the operation panel [A].
