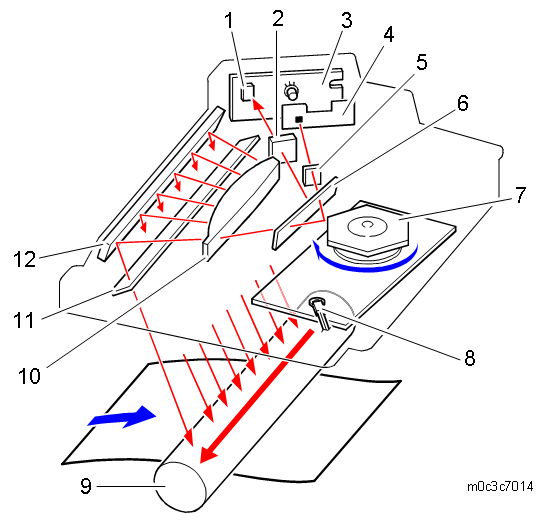

| No. | Item | No. | Item |
|---|---|---|---|
| 1. | Synchronization detector | 7. | Polygon mirror motor |
| 2. | Laser synchronization detector lens | 8. | Laser unit thermistor |
| 3. | LD driver board | 9. | Drum |
| 4. | Aperture | 10. | FTL lens |
| 5. | Cylindrical lens | 11. | Shield glass |
| 6. | Shield glass | 12. | Mirror |
| No. | Item | No. | Item |
|---|---|---|---|
| 1. | Synchronization detector | 7. | Polygon mirror motor |
| 2. | Laser synchronization detector lens | 8. | Laser unit thermistor |
| 3. | LD driver board | 9. | Drum |
| 4. | Aperture | 10. | FTL lens |
| 5. | Cylindrical lens | 11. | Shield glass |
| 6. | Shield glass | 12. | Mirror |
