SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Detailed Descriptions
Image Transfer

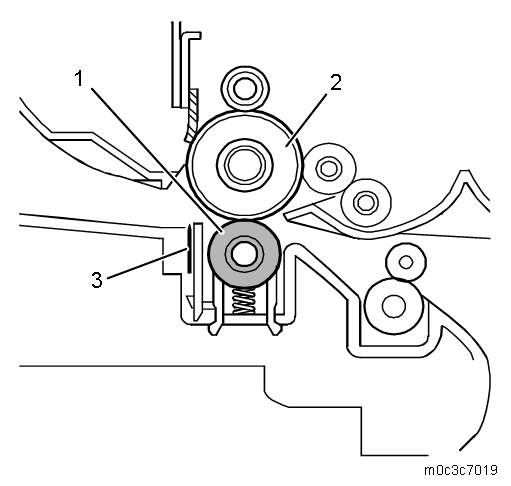

Overview
No.
Item
1.
Transfer roller
2.
Drum
3.
Discharge plate
