SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Paper Feed
Registration Clutch
Remove the drive unit (
Drive Unit
).

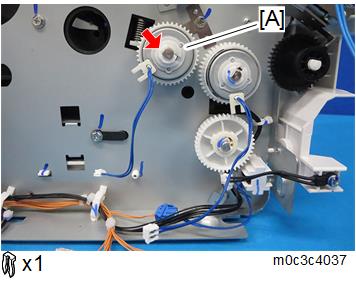

Remove the registration clutch [A].
