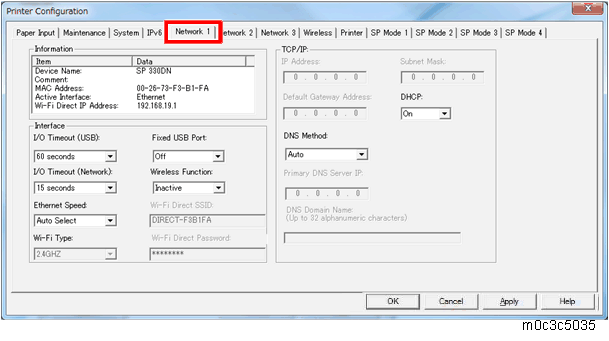

| Group | Item | Selections | Remarks |
|---|---|---|---|
| Information | Device Name | - | String length is 32 |
| Comment | - | String length is 32 | |
| Mac Address | - | - | |
| Active Interface | - | - | |
| Wi-Fi Direct Address | - | - | |
| TCP/IP | IP Address | xxx.xxx.xxx.xxx | This setting is not available if DHCP is enabled. If this setting is changed, the printer power must be turned off/on for the new setting to take effect. |
| Subnet Mask | xxx.xxx.xxx.xxx | This setting is not available if DHCP is enabled. If this setting is changed, the printer power must be turned off/on for the new setting to take effect. Will show all zero if network initialization is not finished. Any change will be ignored before the end of network initialization. | |
Default Gateway Address | xxx.xxx.xxx.xxx | This setting is not available if DHCP is enabled. If this setting is changed, the printer power must be turned off/on for the new setting to take effect. Will show all zero if network initialization is not finished. Any change will be ignored before the end of network initialization. | |
| DHCP | On */ Off | If this setting is changed, the printer power must be turned off/on for the new setting to take effect. | |
| DNS Method | Auto */ Manual | - | |
Primary DNS Server IP | xxx.xxx.xxx.xxx | Up to 32 alphanumeric characters. This setting is not available if DHCP is enabled. The default setting is "0.0.0.0"when DHCP is off. The setting when DHCP is changed from on to off is the previous setting when DHCP was on. If this setting is changed, the printer power must be turned off/on for the new setting to take effect. | |
DNS Domain Name | - | Up to 32 alphanumeric characters. This setting is not available if DHCP is enabled. The default setting when DHCP is off is null string. The setting when DHCP is changed from on to off is the previous setting when DHCP was on. If this setting is changed, the printer power must be turned off/on for the new setting to take effect. | |
| Interface | I/O Timeout (USB) | 15 */ 60/ 300 | - |
I/O Timeout (Network) | 15 / 60 */ 300 | - | |
Ethernet Speed | Auto Select */ 10M half/ 10M full/ 100M half/ 100M full | - | |
| Wi-Fi Type | 2.4 GHZ * | - | |
Fixed USB Port | On/ Off * | - | |
Wireless Function | Active /Inactive * | - | |
| Wi-Fi Direct ID | - | - | |
| Wi-Fi Direct Password | - | - |
*: Default
