SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Laser Unit
Laser Unit Thermistor
Remove the top cover (
Printer models:
Top Cover
,
MF models:
Top Cover
).

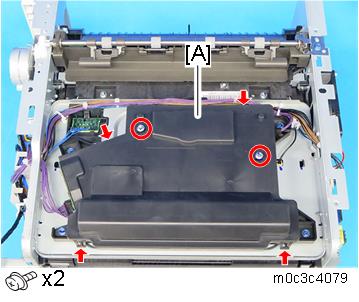

Release the four hooks, and remove the laser unit top cover [A].

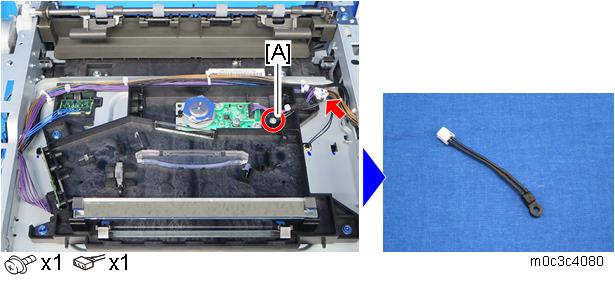

Remove the laser unit thermistor [A].
