Jam Sensor Layout

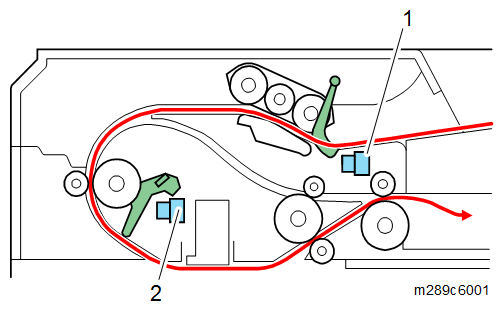

The sensors used for jam detection are shown below.
- Original set sensor
- ADF feed sensor (ARDF feed sensor)
Jam Message List
| Jam message | Cause |
|---|---|
| ADF Original Misfeed | Original set sensor [1] ADF feed sensor (ARDF feed sensor) [2] |
The sensors used for jam detection are shown below.
| Jam message | Cause |
|---|---|
| ADF Original Misfeed | Original set sensor [1] ADF feed sensor (ARDF feed sensor) [2] |
