SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ARDF Unit (for Touch Panel Models)
ARDF Rear Cover

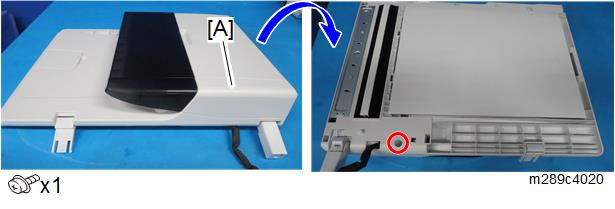

Remove the ARDF unit (
ARDF Unit
).
Turn the ARDF unit over.
Remove the ARDF rear cover [A].

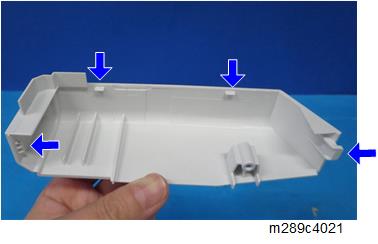

There are many hooks and tabs inside the ARDF rear cover. Before removing the ARDF rear cover, see the photos below.
