SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
ADF/ARDF Unit (Only MF Models)
ARDF Unit (for Touch Panel Models)
ARDF Feed Sensor
Remove the ARDF drive unit (
ARDF Motor
).
Turn the ARDF drive unit over.

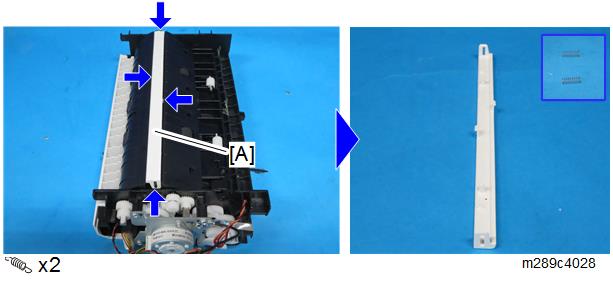

Remove the pressure plate [A] (4 hooks).

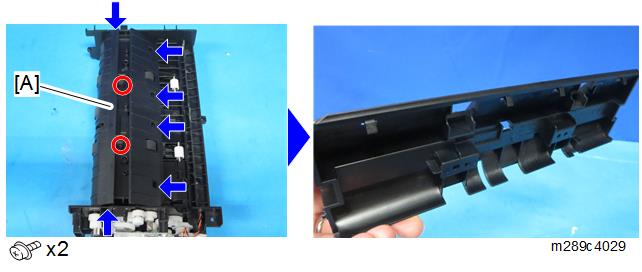

Remove the lower guide [A] (6 hooks).
Remove the ARDF feed sensor [A].
