SP 330DN, SP 330SN, SP 330SFN, SP 3710DN, SP3710SF
Replacement and Adjustment
Paper Feed
By-pass Feed Sensor
Remove the right cover (
Printer models:
Right Cover
,
MF models
:
Right Cover
).

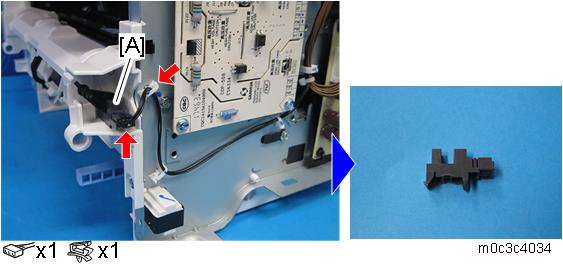

Remove the by-pass feed sensor [A].
