Re-connect the USB cable between IPU board and operation panel.

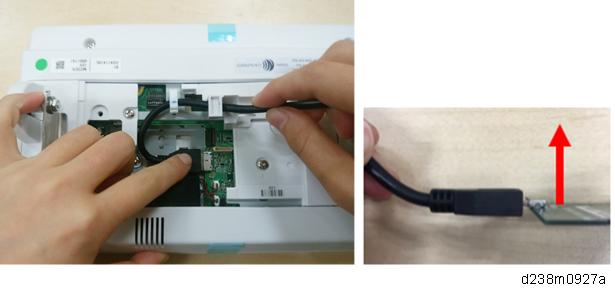

When connecting the cable, hold the molded part of the cable as shown in the figure below so as not to apply excessive force on the connector part. Applying excessive force in the upper direction on the connector may cause connection failure.
Applied to the machine built in October 2016 and beyond:

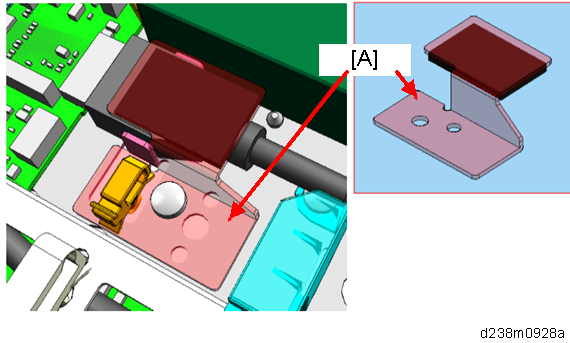

A bracket [A] which covers the upper part of the cable will be added.
PCB for the operation panel
- 1, 3, 6, and 7 are ON for normal.
USB connector [A] (IPU)
