- Remove the rear lower cover. (Rear Lower Cover)
- Remove the development bearing cooling fan with duct [A].

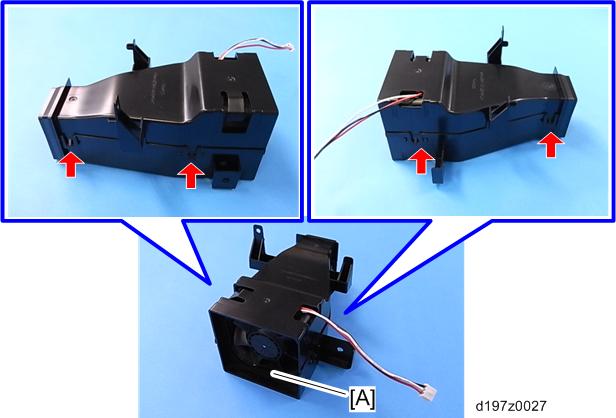

- Dismantle the duct [A]. (
×4)
- Remove the development bearing cooling fan [A].
- Pay attention to the direction of the fan when installing. The decal pasted on the fan must face the outside.
