Toner Supply Unit

The agitator [G] transports the toner supplied into the sub-hopper by raising it to the toner transport path. The transport path is level to make the machine’s height lower.

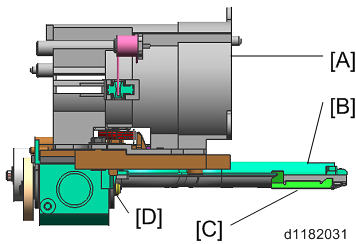

[A] Supply Housing

[B] Toner Transport Path

[C] Shutter

[D] Sub-hopper

[E] Toner Bottle Cap

[F] Sub-hopper

[G] Agitator

[H] Toner Transport Path
