• The machine has two laser units. This procedure describes replacement of laser unit 1. Replacement of laser unit 2 can be done in the same way.

  1. Remove the paper exit tray (Paper Exit Tray)

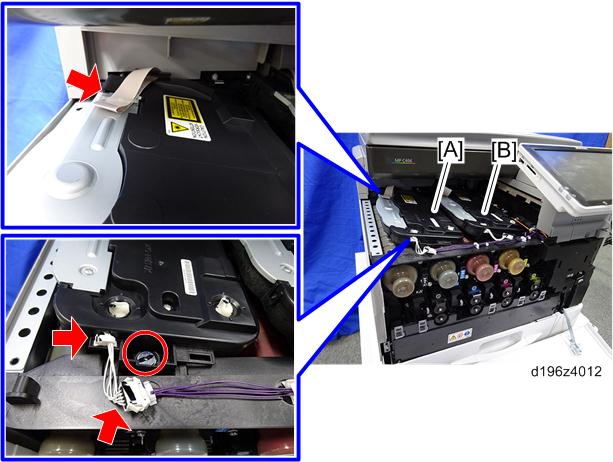

  2. Remove the screw and connector. Disconnect the stopper of the FFC of the laser unit 1 [A]. ( × 1, × 1, × 2)
    Repeat this procedure with the laser unit 2 [B].

    • Be sure to install the washer under the screw when assembling.

  3. Pull the laser unit [A] out slightly, open the connector cover, and then disconnect the FFC [B]. ( × 1)

    • Unlock the FFC [A] by lowering the white tab.
    • Never touch the shield glass under the laser units when replacing them.
