Bypass Feed Roller

Before Replacing the Bypass Feed Roller

Before replacing the bypass feed roller, reset the PM counter.

1. Turn the power ON.
2. Reset the PM counter. (Refer to Replacement Procedure of the PM/Yield Parts)
3. Turn the power OFF.

Replacing the Bypass Feed Roller

1. Remove the bypass feed unit. (Bypass Feed Unit)
2. Remove the bracket [A]. ( × 1)

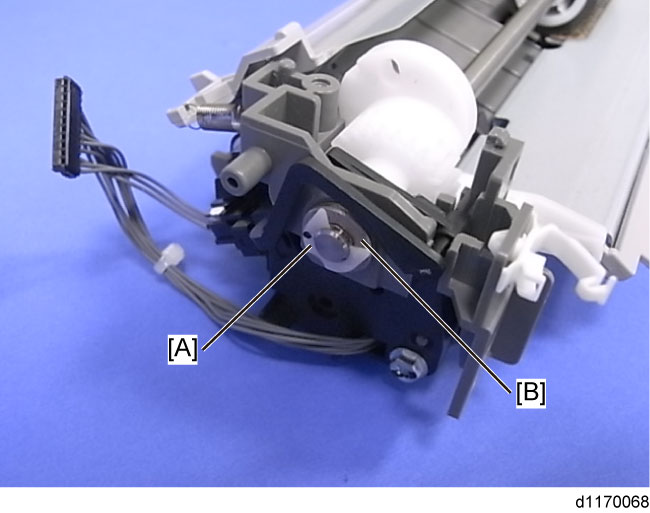

3. Remove the E-ring [A] and bearing [B] at the front of the bypass feed unit. ( × 1, bearing × 1)

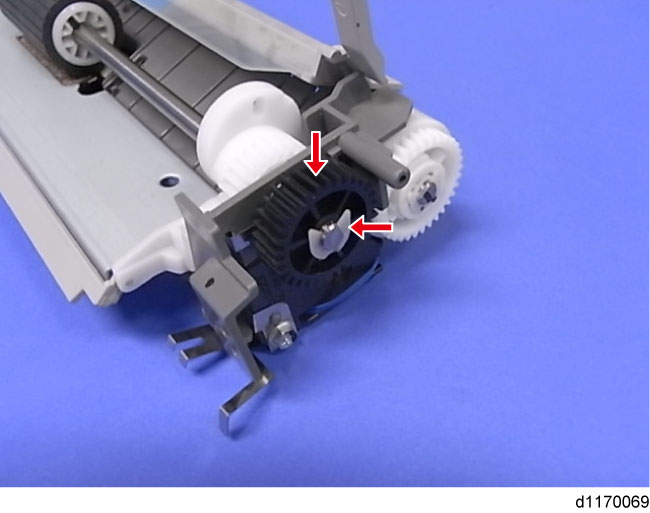

4. Remove the E-ring and the gear at the rear of the bypass feed unit. ( × 1, gear × 1)

5. Bearing (bearing × 1)

6. E-ring at the front of the bypass feed unit ( × 1)

7. E-ring at the rear of the bypass feed unit ( × 1)

8. Move the front cam and rear cam [B] inward while pushing down the bottom plate [A].

9. Remove the bypass feed roller with the shaft from the front side.

10. Bypass feed roller [A] (Hook × 1)
