1. Remove the fusing unit. (Fusing Unit)
  2. Remove the fusing upper cover [A] (×4).
  3. Remove the fusing entrance guide [A] (×2).
  4. Remove the thermistor bracket [A] (×2).

  5. Remove the fusing lower cover [A] (×2,×1).

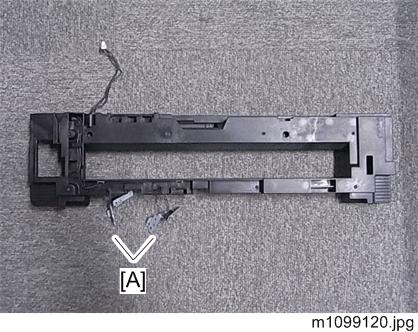

    • Put the fusing lower cover as shown above in order to prevent damaging the thermistor [A].

    • The guide [A] of the fusing lower cover can be adjusted in the arrow directions by removing the two screws.

  6. Remove the thermistor ×2 [A] (×1 each).
  7. Remove the thermistor bracket [A] (×1,×1).
  8. Remove the thermistor [A] (×1).
